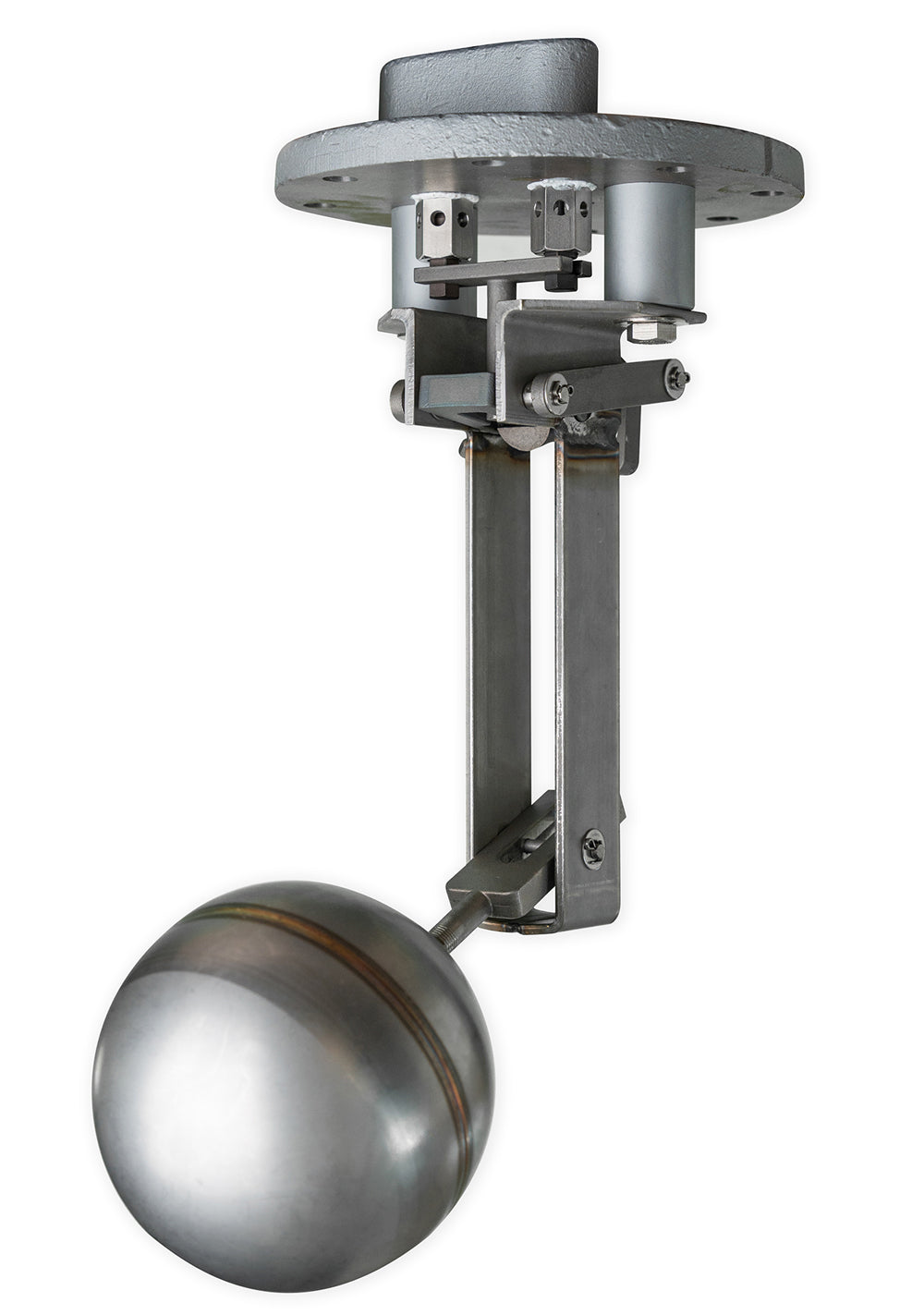

PDP-2

ABFLUIDIX PDP Retrofit Mechanisms are engineered to be installed directly into other manufacturers’ tank bodies in order to achieve longer product life, better start-up efficiency, and heat transfer in normal running conditions. The product is shipped designed – so that no field adjustment is needed prior to installation. The Patented “Quick Assist” (QA) design maximizes the life of the pump by ensuring the pump mechanism functions correctly at every fill and discharge cycle. These mechanisms are simple and easy to replace, and are a very cost-effective way to re-new your condensate pumps throughout your facility. The PDP is uniquely manufactured for non-electric motive pump applications, offering a 3-year unlimited cycle warranty with an individual product renewal program. Single Inconel X750 Compression spring design with patented lift valve operation ensures less failure than other manufacturers due to corrosive steam and condensate systems. This pump mechanism can operate under full motive pressure using steam, air, nitrogen, or other pressurized gas as the motive force.

• Equipped with our Patented “Quick-Assist” QA Mechanism which extends the useful life of the pump

• Mechanism incorporates heat-treated stainless steel wear items for ultimate corrosion resistance

• Ball float is ultra seal welded to eliminate leak points at the connections and insure consistent operation

• Single compression coil spring made from Inconel-X-750 for high-temperature corrosive service

• Operates using steam, air, nitrogen or other pressurized gas as the motive force

• This unit is Non-Electric – can be used in remote locations or NEMA 4, 7, 9 and hazardous areas

• No adjustment needed – factory set for optimal performance – install and operate

• Free floating ball on pressure valve mitigates dirt failure with patented lift valve operation

• Lifetime warranty on spring assembly

Ø D: 9” L: 18.25” Wt.: 29 lbs

No charge repairs or replacements for ABFLUIDIX products covered under warranty. ABFLUIDIX retrofit products must be registered to take advantage of warranty benefits. To register your product, visit the ABFluidix Flow Control Products website.
