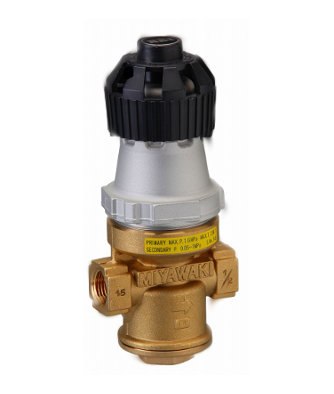

Miyawaki 1/2" RE-1 Regulating Valve

Self acting pressure reducing valve for steam. Automatic valve that reduces the steam supply pressure to a defined set pressure. Pressure fluctuations on upstream side are followed by the downstream side. No external energy required.

1. Direct acting Pressure Reducing Valve.
2. Very compact.
3. Pressure reduction can be made in a wide range with a single adjusting spring.
4. Bellows design provides extended service life over diaphragm designs.
5. Plastic adjusting handle allows for safe pressure adjustment without the need for any tools.

Suitable for: Dyeing, laundry machines, food industry, sterilizer etc.

L: 80mm/ 3.2" H1: 137mm/ 5.4" H2: 46mm/ 1.8" W: 65mm/ 2.6" Wt: 1,4kg/ 3.1lb
