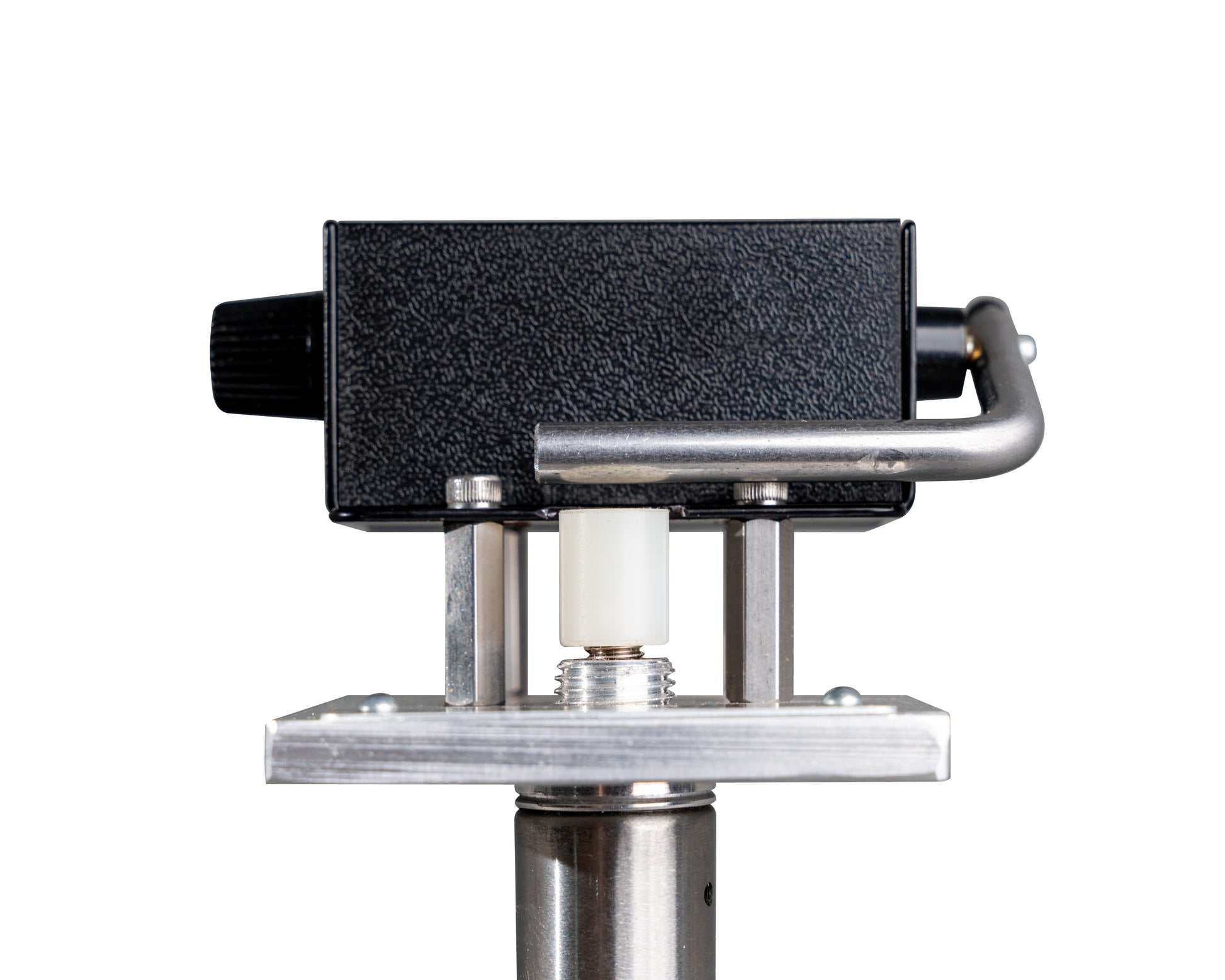

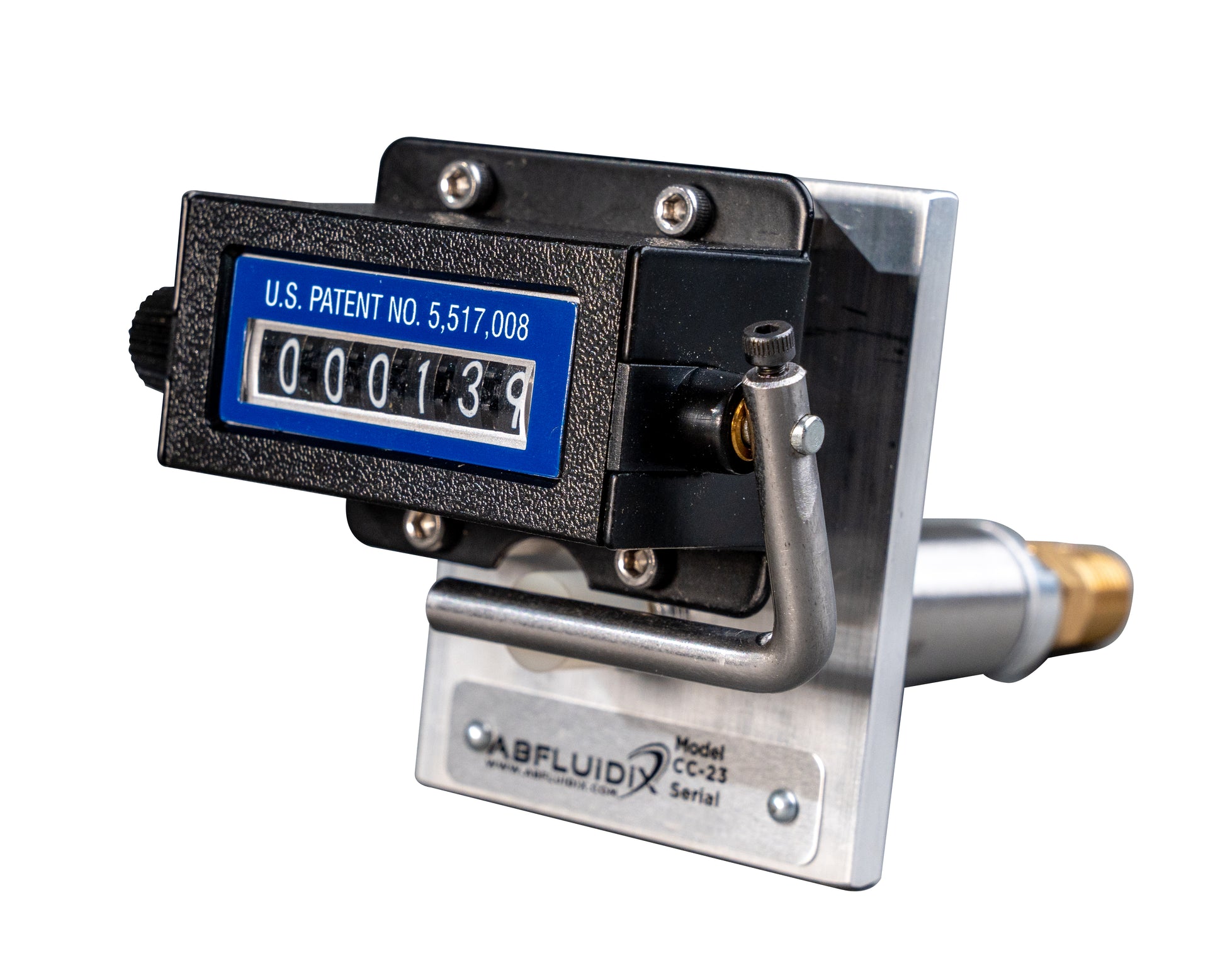

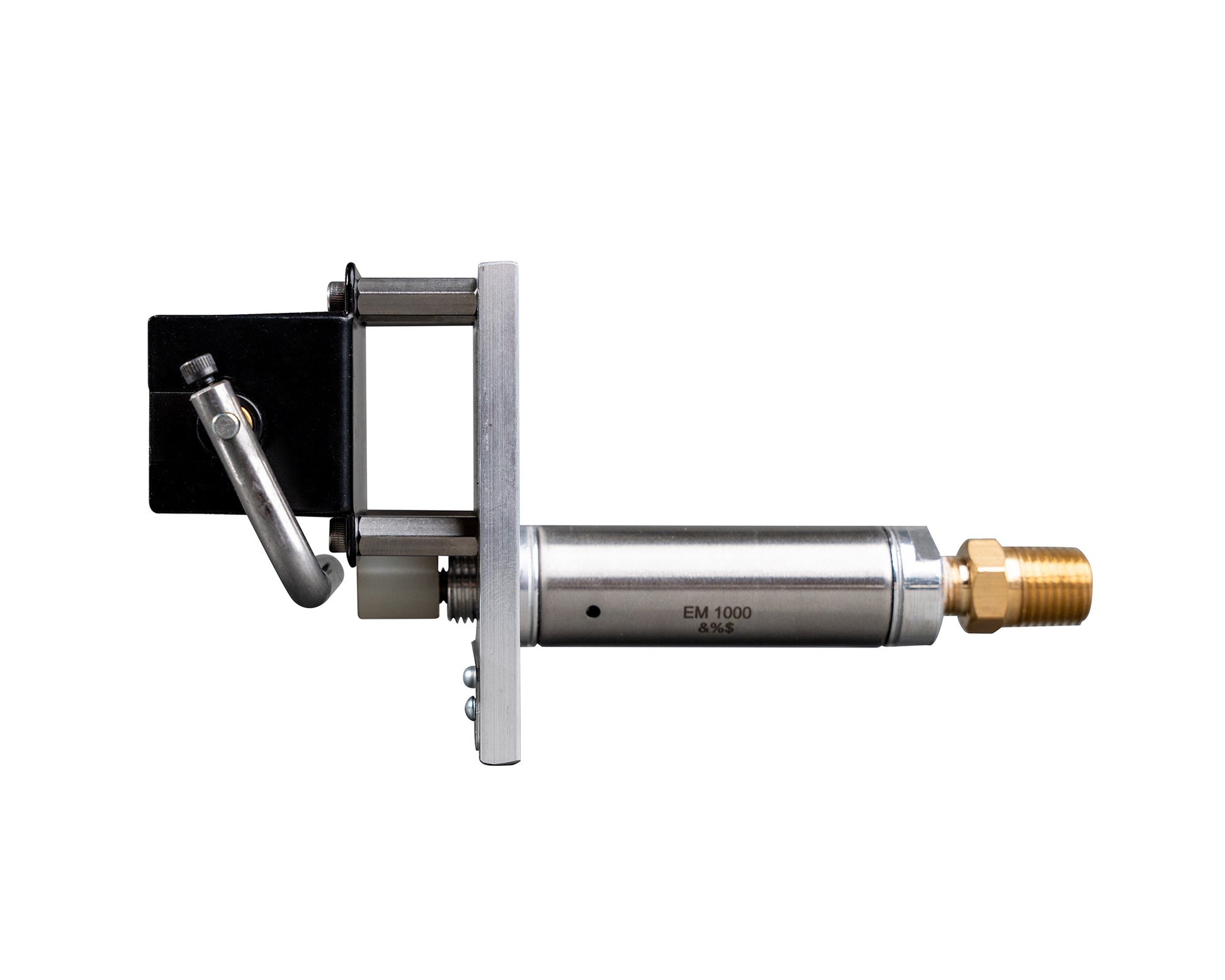

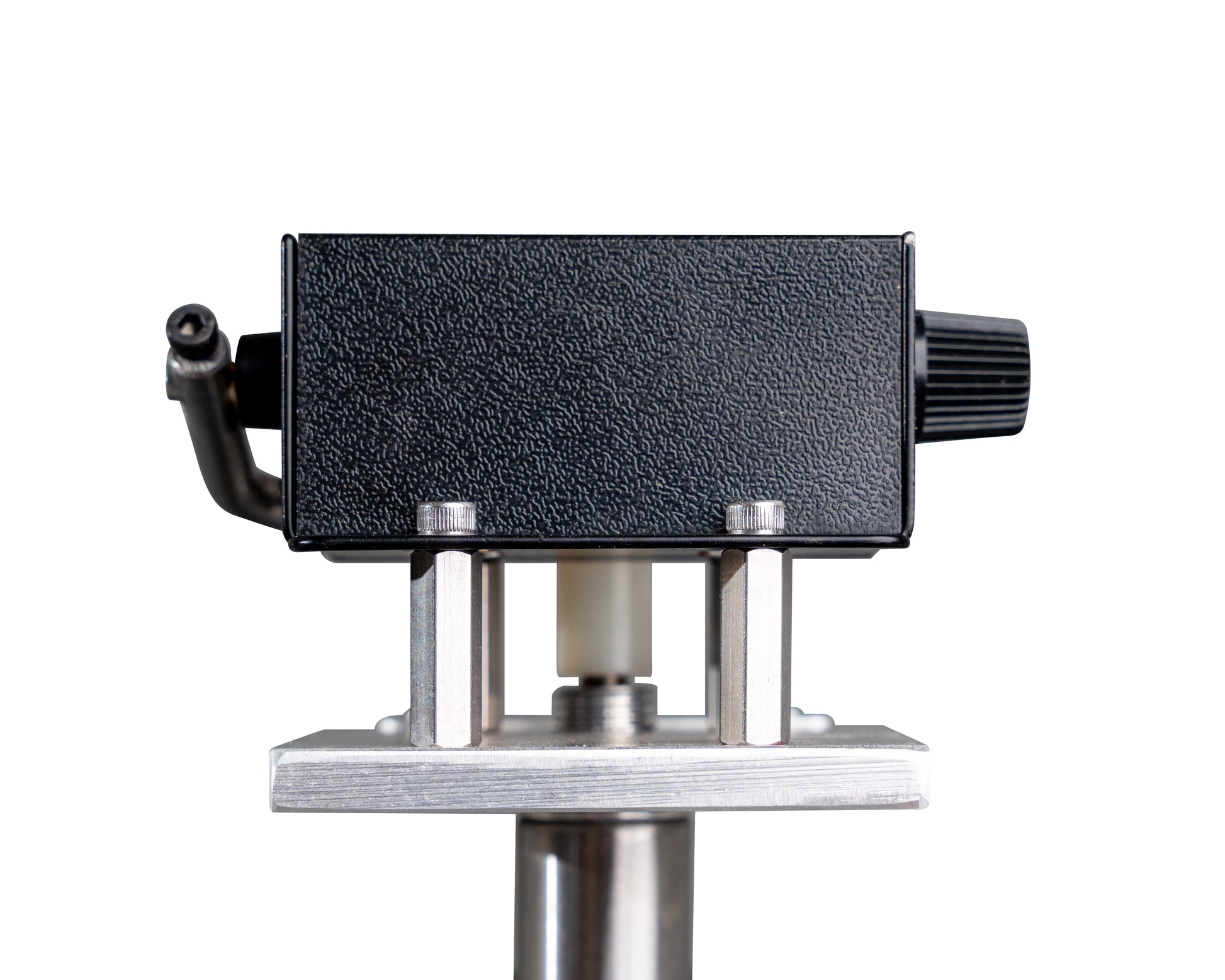

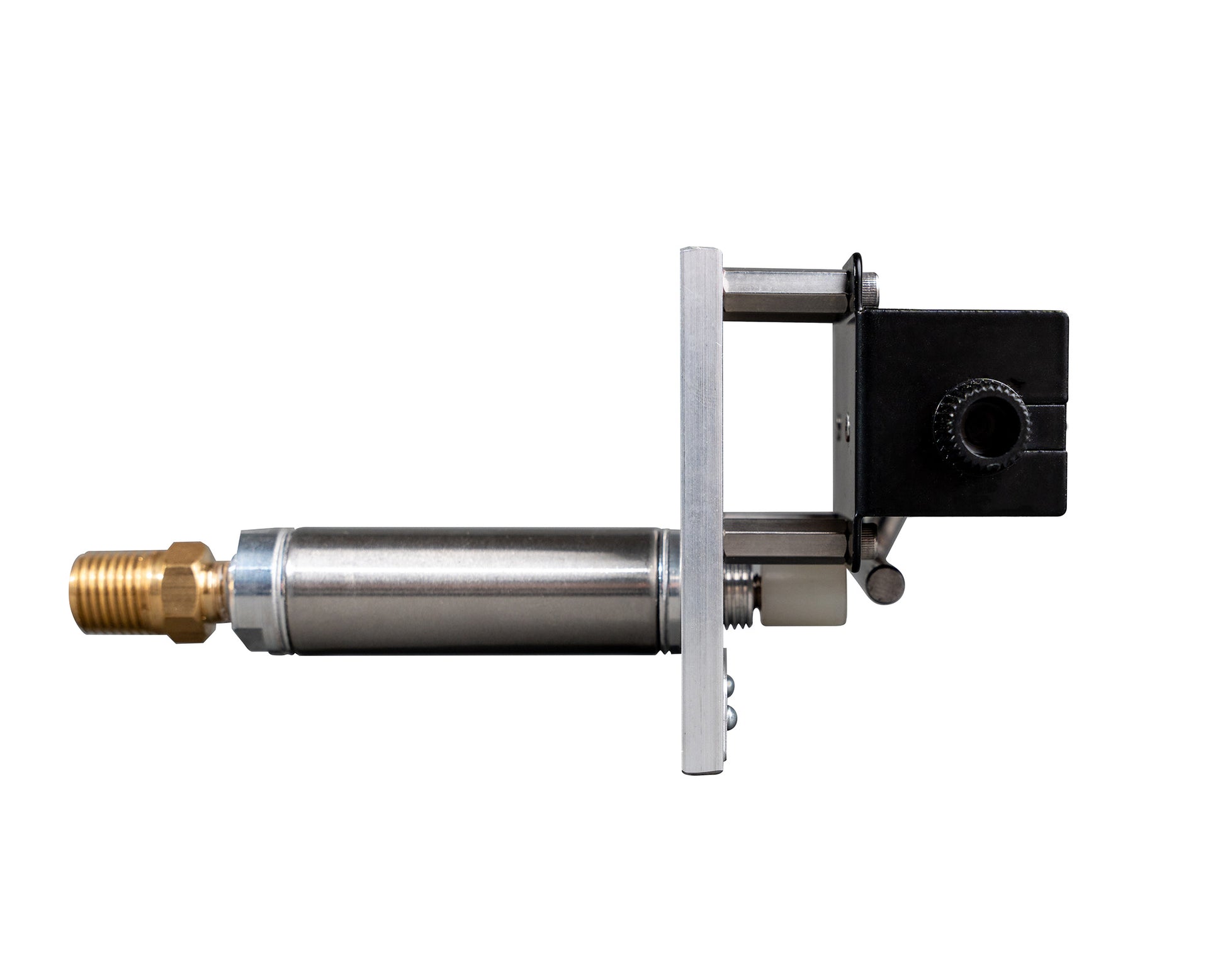

CC-23

The Analog Pressure Driven Pump Cycle Counter shows the number of cycles made by the condensate pumping unit. It can be used to determine maintenance intervals and calculate the amount of condensate removed. In conjunction with a pressure powered pump, a cycle counter determines the volume being pumped over a given period of time. Since the volume pumped per cycle is a known value, counting the cycles is a simple, accurate and inexpensive way of measuring the flow. Knowing how many times a pump has cycled can also play an important part in a scheduled maintenance program.

• Compatible with any manufacturer’s pressure driven pump that has a ¼ inch male thread connection and/or a coupler adapter.

• Easy-to-read, 6 segment Analog display.

• Built in reset button.

• Self-powered – no secondary power supply needed.

• Engineered to respond to 10 PSI positive pressure build-up during the pumping cycle (pump body vented to atmosphere during fill cycle).

• Remotely mountable.
